CUSTOM Printed Graphic Overlays

The Durable, High Performance Interface Between Your Users and Your Equipment

Nameplate & Panel Technology specializes in engineering custom graphic overlays that deliver reliable performance, protect critical internal components, and provide intuitive control for operators. A graphic overlay is the crucial front line of your product – it’s the first thing your customers see and the primary way they interact with your machine.

Whether you are manufacturing food processing machinery, medical & laboratory devices, farm equipment, power distribution systems, or other demanding OEM applications, our overlays are built to survive. From harsh chemical wash downs and sterile environments to UV degradation and extreme weather, we engineer user interfaces that won’t fade, crack, or peel. We don’t just print graphics; we solve problems to ensure your OEM equipment looks premium and functions flawlessly for years.

Electrical breaker inside electric panel in power plant.

Key Features, Advantages and Benefits of Printed Graphic Overlays

Our project managers guide you from artwork to application, helping you choose the proper materials, printing methods, and finishes for your specific end-use environment. We understand the real-world demands placed on your equipment.

FEATURES:

  • Sub-Surface (Second Surface) Printing: Graphics are printed on the underside of the transparent material, meaning the substrate itself acts as a protective shield for your branding and control instructions.
  • Application Specific Materials: Premium-grade Polyester (PET) and Polycarbonate (Lexan™) designed to resist chemicals, UV rays, moisture, and extreme temperature fluctuations.
  • Custom Interface Engineering: Seamless integration of clear or tinted display windows, dead fronting (hidden until lit graphics), and selective texturing.

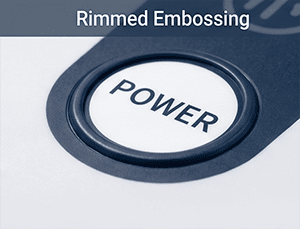

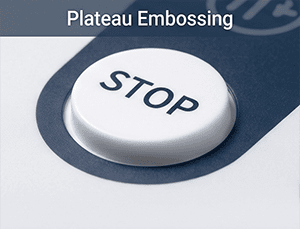

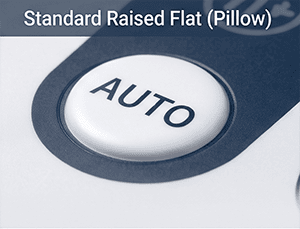

  • Tactile Feedback Options: Custom rim, pillow, or dome embossing to guide user interaction, even when operators are wearing heavy work gloves.
  • Industrial Adhesives:  Backed with high performance 3M™ adhesives matched to your specific substrate (metal, low surface energy plastics, or powder-coated surfaces).

ADVANTAGES:

  • Total Customization: Exact color matching (Pantone/RAL) ensures your OEM branding is perfectly represented on every panel.
  • Immune to Surface Wear: Because the ink is printed behind the material, heavy abrasion, frequent button presses, and industrial cleaning solvents cannot scratch the graphics off.
  • Rapid Prototyping & Scalability: Efficient screen and digital printing capabilities allow for fast short-run prototyping as well as high volume production.
  • Pre-Kitted Delivery: We can streamline your assembly line by providing overlays, decals and labels kitted and grouped by product, SKU, or specific machine. Learn more about our OEM and Branding Kits here.

BENEFITS TO YOU:

  • Enhance Brand Authority: Give your equipment a premium, professional finish that signals quality and reliability to your customers.
  • Reduce Warranty Claims & Maintenance: Prevent costly control panel failures caused by moisture ingress, chemical degradation, or cracked interfaces.
  • Improve User Interaction: Clear, legible, and tactically optimized controls reduce operator error and improve safety.
  • Simplify Procurement: Rely on our material consulting and engineering expertise to get the perfect overlay the first time, eliminating trial and error.

Material Selection Guide: Polyester vs. Polycarbonate

Choosing the right base material is the most critical step in engineering a graphic overlay. The choice largely depends on the environment your equipment will operate in.  Here is how to determine what your control panel needs:

Material
Best Use Case
Key Strengths
Ideal Industries

Polyester (PET)
Environments with heavy chemical exposure or membrane switches requiring millions of flex cycles.
Superior flex-life (won't crack when pressed repeatedly). Exceptional resistance to harsh solvents, cleaning agents, and sterilization chemicals.
Food Processing Equipment, Medical Devices, Laboratory Equipment, Oil & Gas Equipment, Automotive Equipment

Polycarbonate (Lexan)

High-impact areas detailed control panels, & equipment requiring crystal clear LCD/LED display windows.

High-impact resistence, excellent optical clarity, easy to die-cut and emboss.

.

Power Transmission & Distribution Panels, Farm Equipment, General Industrial Automation

.

Polyester & Polycarbonate Overlays

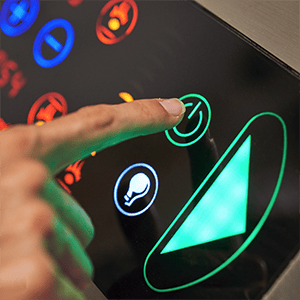

Graphic overlay 300x300

Industrial Graphic Overlay Controls (Printed)

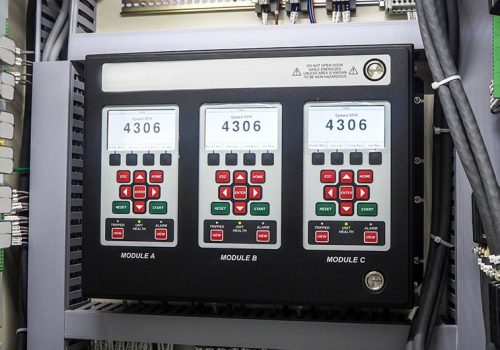

Industrial control console with switches, push buttons and digital controllers. Selective focus.

Industrial Graphic Overlay Panel (Printed)

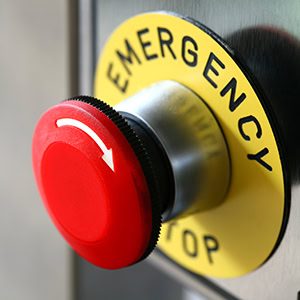

emergency button on the machine

Legend Plates (Laser Etched Plastic)

Metalphoto & Metal

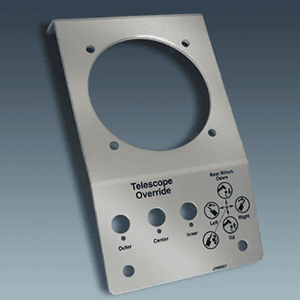

Metalphoto Overlays 300

Industrial Graphic Overlay (Metalphoto & Metal)

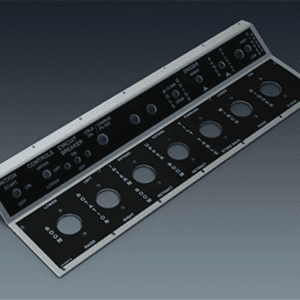

Metalphoto COntrol Panel 300

Industrial Graphic Overlay Front Panel (Metalphoto & Metal)
